Features & Specs


Features at a glance:

  • Turns LCD's, Plasma, HDTV, or traditional TV monitors into digital signs
  • Linux based dedicated appliance for high reliability and low maintenance
  • Entirely menu driven, no knowledge of Linux required to operate
  • Solid state flash disk based - no mechanical disks to wear out
  • Network enabled for wired or wireless network interfaces
  • Run one to hundreds of digital signs on any TCP/IP network - fully scalable
  • Content can be managed peer to peer with our Windows based client or from a remote web server
  • Internet enabled - will pull live content from any web server worldwide, automatically
  • Small enough to wall mount behind monitors or behind walls
  • Affordable and flexible in its deployment, fully automatic operation
  • AC or DC powered for fixed, remote, or mobile applications
  • Viewer capturing live local weather content is available
  • Ultra-Compact case design
  • Highly Integrated all in one CPU platform
  • Power Efficient - uses less than the power of a single 60 watt light bulb
  • Quiet - no hard disk - all solid state - small case fan
  • Modular - can be desk mounted, stacked, wall mounted, or rack mounted

Detailed Features:

  • Compact embedded Linux operating system on solid state disk for ultimate reliability
  • Menu driven setup utility built into appliance - connect monitor, mouse, keyboard only once for setup
  • Remote administration via our Windows based client provides remote playlist editing, reboot, power-down, refresh, controls
  • Small footprint appliance - only 10.2"D x 2.3"H x 7.3"W (wall mount model)
  • Ultra lightweight aluminum alloy - with black finish - easily mounts with 4 drywall screws (wall mount model)
  • Uses standard line current AC 100 ~ 240V - auto detecting power transformer included
  • Can be 12 volt DC powered for remote or mobile applications - DC 12V @ 6A max
  • Automatic restart from power failure built in - single power button control
  • Uses VIA C7 (1.5GHz) processor for low cost reliable operation
  • 256 MB of internal DDR RAM, plus 512MB of solid state disk memory for operating system
  • 10/100 Ethernet port with status LED's is standard
  • DHCP or fixed IP address operation - supports all TCP/IP configurations
  • WiFi 802.11 B and G wireless networking is optional via internal card/antenna - supports WEP
  • SVGA PC monitor port is standard - supports resolutions up to 1600x1200
  • NTSC RS170A or PAL (switchable) composite video and S-video outputs are standard, and can run simultaneously with SVGA output
  • Supports BMP, PNG, JPEG, and GIF image formats for display

  • Auto-scaling and sizing of images transmitted to the appliance that don't exactly fit the screen resolution
  • HDTV component video output (Y/Pr/Pb) is optional
  • Custom hardware and video configurations are available

A single ViziFrame Appliance can drive these monitor combinations:

TV only
composite or S-video output only

CRT only
SVGA computer video output on the DB15 connector only


CRT+TV - both SVGA and composite/S-Video simultaneously


ViziFrame Appliance Specifications:


  Embedded VIA C7-D 1.5GHz Processor, 25watts


  VIA CN700 North Bridge and VIA VT8237R+ South Bridge

System Memory

  1 x DDR2 400/533 DIMM Slot, supports up to 1GB


  Integrated VIA UniChrome Pro AGP Graphics


  Built in TV Video Encoder provides S-Video / Composite for NTSC / PAL System


  6-Channel AC97 Audio CODEC


  1 x 10/100 Ethernet (Gigabit Ethernet optional)


  1 x ATA133 Connectors support 4 x ATA133/100/66 Devices

  2 x SATA150 Connectors support 2 Serial ATA Devices with RAID 0, 1 Function

Expansion Slots

  1 x 32-Bit PCI Expansion Slot (only usable in ViziFrame Rack Mount Model)

  2xAD Connector for optional Daughter Boards

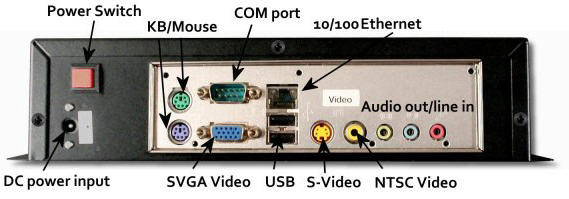

Back Panel I/O


  2 x USB 2.0

  1 x Serial

  1 x D-Sub 15-pin SVGA (monitor out)

  1 x S-Video 4 pin mini DIN (TV-Out)

  1 x RCA (TV-Out)

  1 x PS2 Keyboard

  1 x PS2 Mouse

  1 x RJ-45 LAN

  3 x Audio - Line-In, Line-Out & Mic-In

Onboard I/O


  1 x USB 2.0

  1 x Serial


  Award 4MBit Flash ROM

Weight and Size

  Desktop Unit: Weight 4 pounds 8 ounces Size  10.8"D x 2.5"H x 8.3"W

  Wallmount Unit: Weight 3 pounds, 6 ounces Size 10.2"D x 2.3"H x 7.3"W

  Rackmount Unit: Weight 9 pounds, 1 ounce Size 15.75"D x 1.75"H x 19"W




  1 x additional 10/100 or 10/100/1000 Gigabit Ethernet

  DVI Video Port

  Component / HDTV Y/Pr/Pb video port via 3X RCA jacks






ViziFrame is ROHS compliant

ViziFrame has energy saving features built in, which exceed Energy Star requirements by more than 50%, but we can't show the Energy Star logo because they are being petty about it. ;-)
